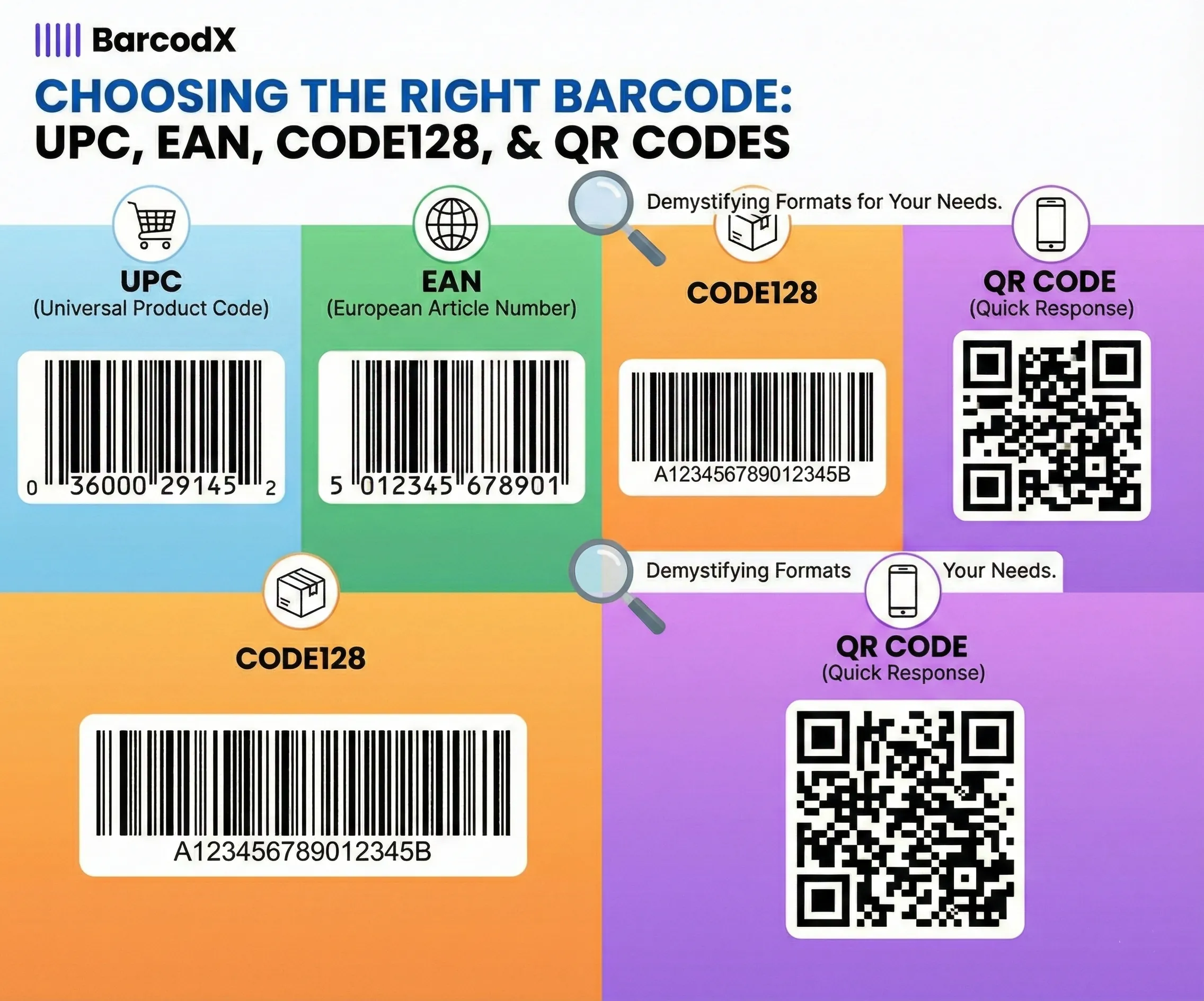

Choosing the Right Barcode: UPC, EAN, CODE128, & QR Codes

Picking a barcode seems simple until you're faced with a dozen acronyms: UPC, EAN, CODE128, QR... What's the difference? Choosing the wrong one can cause scanning errors, supply chain delays, or failed marketing campaigns.

This guide will demystify the four most popular barcode formats. We'll cover what they are, what they're used for, and how to decide which one is right for your needs.

1D Barcodes (Linear): For Retail & Inventory

One-dimensional (1D) barcodes are the classic striped codes you see on virtually every product. They store a small amount of text data (usually an identification number) and are read by laser scanners. Their primary job is to identify an item in a database.

UPC (Universal Product Code)

Best for: Retail products sold in the U.S. and Canada.

The UPC is the most recognizable barcode in North America. It consists of 12 digits that uniquely identify a product and its manufacturer. If you plan to sell items in a physical store, you'll need a GS1-certified UPC.

• Structure: 12 numeric digits.
• Use Case: Point-of-sale scanning, product identification.
• Limitation: Can only store numbers and is geographically focused.

EAN (European Article Number)

Best for: Retail products sold outside of North America.

The EAN is the international equivalent of the UPC. The most common format, EAN-13, consists of 13 digits, including a country code. Most modern scanners can read both UPC and EAN barcodes, but if your primary market is global, EAN is the standard.

• Structure: 13 numeric digits (most common).
• Use Case: Global retail point-of-sale.

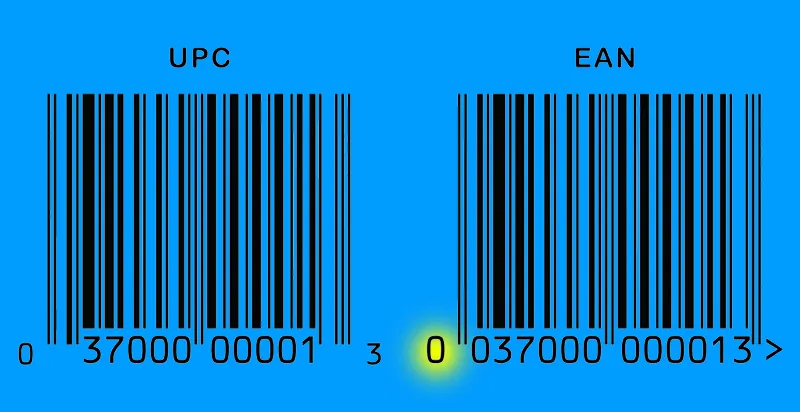

• Note: A UPC can be converted to an EAN by adding a '0' at the beginning.

CODE128

Best for: Logistics, warehousing, and internal asset tracking.

CODE128 is a high-density, versatile barcode that can encode both numbers and letters (alphanumeric). This makes it ideal for internal operations where you need to store more complex information like batch numbers, serial numbers, or shipping container codes. It's not typically used for point-of-sale scanning.

• Structure: Alphanumeric, variable length.
• Use Case: Shipping labels, inventory management, asset tracking.
• Advantage: Can hold much more data than UPC/EAN in a compact space.

2D Barcodes: For Data & Digital Interaction

Two-dimensional (2D) barcodes, like QR codes, store information in a matrix of black and white squares. They can be read by smartphone cameras and can hold significantly more data, including URLs, contact info, and more.

QR Code (Quick Response Code)

Best for: Marketing, digital payments, and connecting the physical world to online content.

QR codes have exploded in popularity because they are so easy to use with a smartphone. They are the perfect tool for marketing campaigns, event tickets, restaurant menus, and sharing Wi-Fi credentials. Unlike 1D barcodes, they have built-in error correction, meaning they can still be read even if partially damaged.

• Structure: Alphanumeric, can store up to 4,296 characters.
• Use Case: Website links, app downloads, event check-ins, product information.
• Advantage: High data capacity and error correction.
